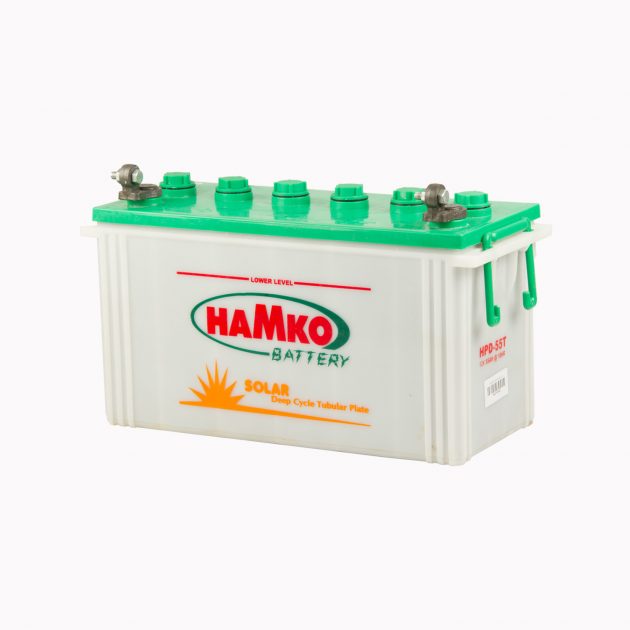

Solar-Battery
Solar-Battery

105.00৳

Description Title

  • Rugged Torr Tubular Positive plate
  • Superior Performance, High Reliability & Longer service life

Category:
  • Made of Torr Tubular Positive Plate
  • GEL Electrolyte from Exide’s state-of-the-art GEL manufacturing plant.
  • A combination of Tubular Toughness with the Maintenance Free comfort
  • No Acid Stratification – Superior Service Life
  • Deep discharge protected technology
  • Cycling in a State of discharge
  • Low Recharge Factor – Faster recharging
  • Completely spill proof and leak proof – Easy to handle and transport
  • Solatron ranges meet IS 15549, IEC 61427, IEC 60896 – 21 & 22 specification
Capacity Weight & Dimension. Cell Type HPD 20T HPD 30T HPD 40T HPD 55T HPD 80T HPD 100T HPD 130T
Capacity in Ampere Hours at 25°C 20 Hr.(C20) 24 35 44 65 90 115 140
10 Hr.(C10) 22 30 40 55 80 100 130
5 Hr.(C5) 18.7 25.5 34 46.75 68 85 110.5
Discharge current in Ampere 20 1.2 1.75 2.2 3.25 4.5 5.75 7
10 2.2 3 4 5.5 8 10 13
5 3.74 5.1 6.8 9.35 13.6 17 22.1
External dimension of Cell(mm) Length(mm) 240 300 254 386 495 502 510
Width(mm) 125 170 223 178 182 220 270
Height with terminal(mm) 215 238 243 250 250 245 255
Approx.weight of Cell(kg) Dry 6.75 9.3 11.11 16.55 22.6 28.45 34.91
Wet 10.75 17.1 20.73 26.9 36.53 42.6 54.5
Approx.weight of Electrolyte (kg) Wet 4 7.8 9.62 10.35 13.93 14.15 19.59
No.of Pillars per Cell   2 2 2 2 2 2 2
Container Type   NS-60 N-70 N60NS-100 N-100 N-120 N-150 N-200
Performance
Characteristics
Charging Efficiency
(Up to 60% state of charge) 97% Life-cycle		 80% depth of discharge 1200 cycles
50% depth of discharge 2400 cycles
20% depth of discharge 3600 cycles
